Camera Semiconductor Cooling System

Fits cameras with a flip-out LCD screen slot (75–94mm / 2.95–3.70" in length, ≥53mm / 2.09" in width)；Features a semiconductor cooling module, aluminum heat sink, and high-efficiency fan for rapid heat dissipation and overheating prevention；Ensures reliable performance during extended shoots, live streaming, or in hot environments—prevents shutdowns, image degradation, and battery drain；Supports both Type-C external power and magnetic battery power to meet different shooting needs；Offers Low, High, and Auto modes—precisely control cooling performance based on usage；Delivers strong airflow while staying quiet—suitable for audio recording and quiet settings；Soft silicone pads on contact surfaces protect your device from scratches Quick & Secure Installation: Easy to mount and remove, with a snug fit and stable usage；Battery with magnetic attachment—long-lasting and easy to replace；Cooler (JJC CCS-UN1SE) and battery (JJC CCS-BAT) can be purchased separately to suit different shooting needs

Model: CCS-UN1
Bar Code: 6950291532602

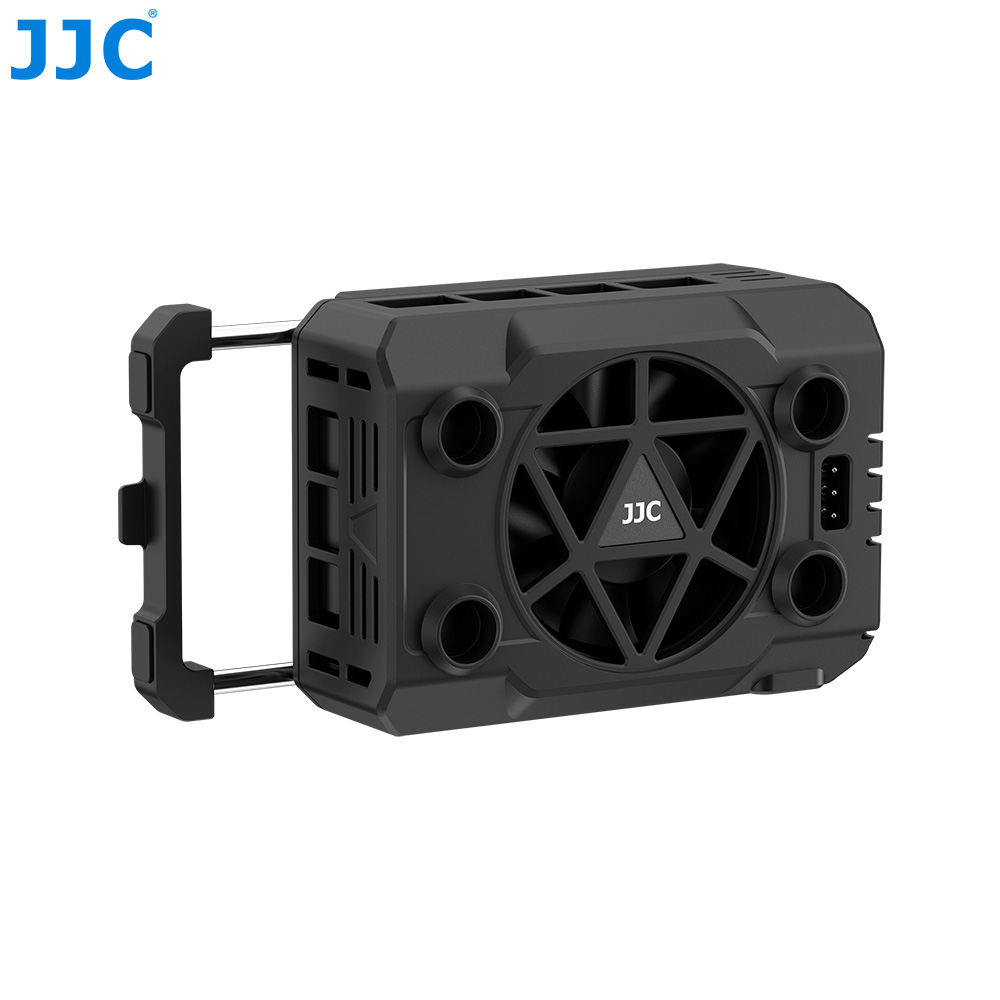

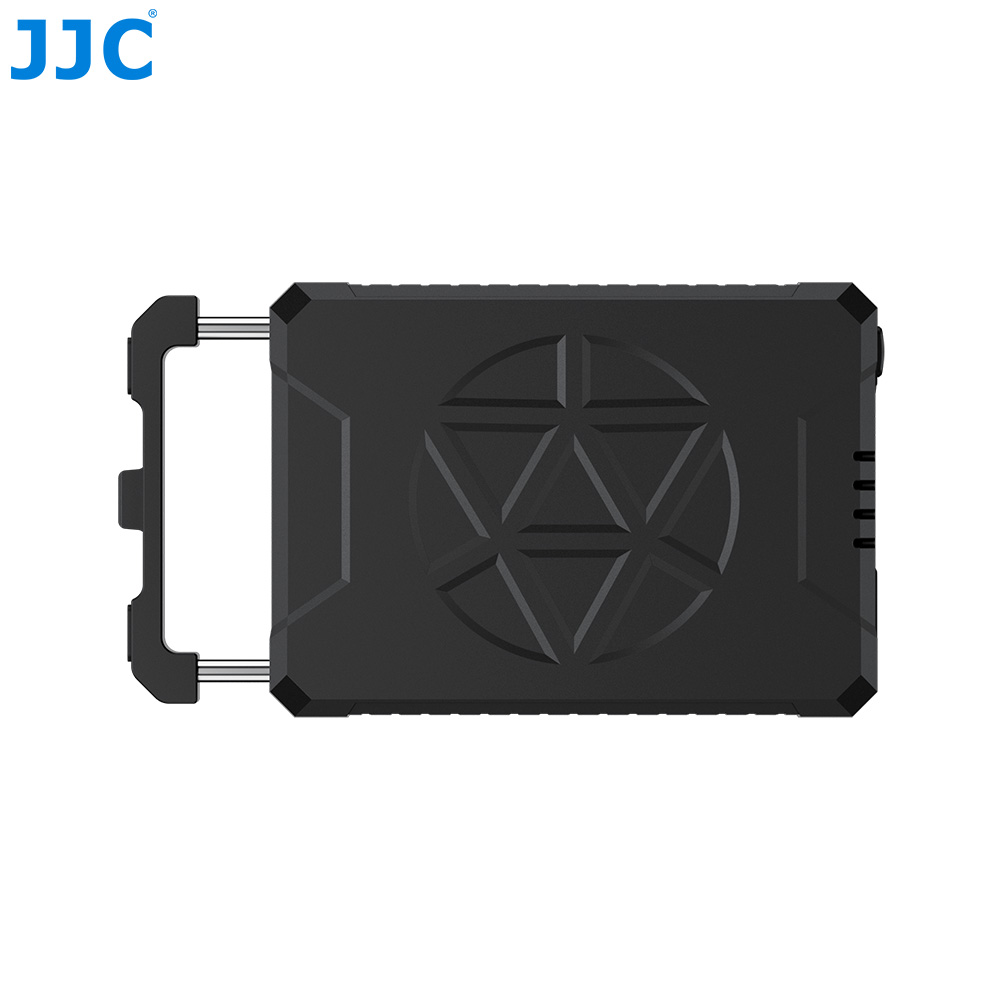

JJC CCS-UN1 Camera Semiconductor Cooling System is compatible with most cameras equipped with a flip-out LCD screen. It is specially designed for extended shooting, live streaming, and use in high-temperature environments. It effectively reduces the camera body's temperature to ensure stable and continuous performance. The cooler features a high-efficiency semiconductor heat dissipation structure, combined with a powerful fan and aluminum heat-conducting plate to quickly draw heat away from the camera. It helps prevent issues such as image quality degradation, automatic shutdown, or reduced battery life caused by overheating. It supports two power supply options: a Type-C external power source or a magnetic battery. The cooler offers three cooling modes: Low, High, and Auto. In Auto mode, it intelligently adjusts the fan speed according to the temperature to meet different cooling needs. The high-performance silent design ensures strong airflow while remaining quiet enough for recording or use in quiet environments. Multiple silicone pads are placed where the cooler contacts the camera, preventing scratches. With quick installation and a secure fit, this cooler is the ideal accessory for professional photographers, outdoor creators, and streamers working in summer or under high workloads. The battery features a magnetic design that allows it to attach directly to the cooler for power. It’s easy to install and remove, offering flexible use. With long-lasting battery life, it supports extended shooting sessions. In addition, the JJC CCS-UN1SE (cooler only) and JJC CCS-BAT (battery only) are also available as optional accessories, allowing you to choose according to your specific needs. Installation is simple — just insert the spring-loaded latch into the gap between the flip screen hinge and the camera body to secure it firmly in place.

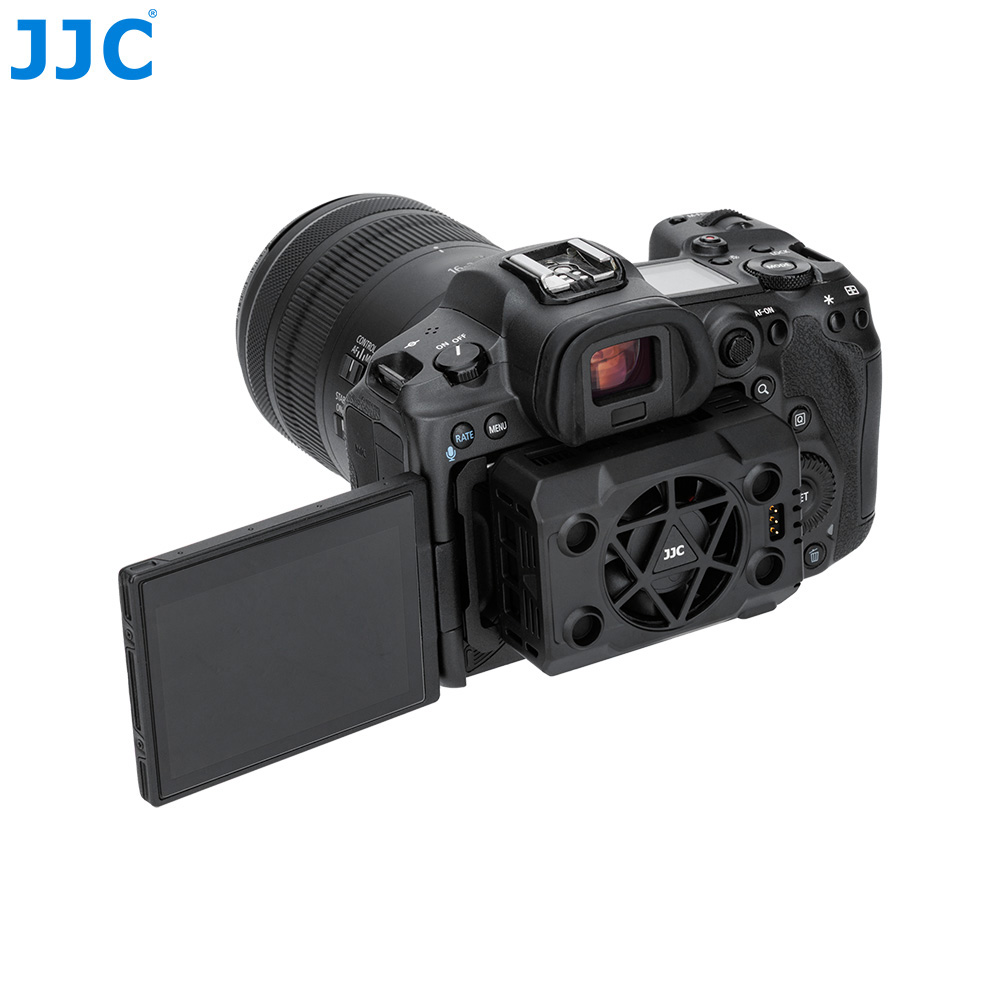

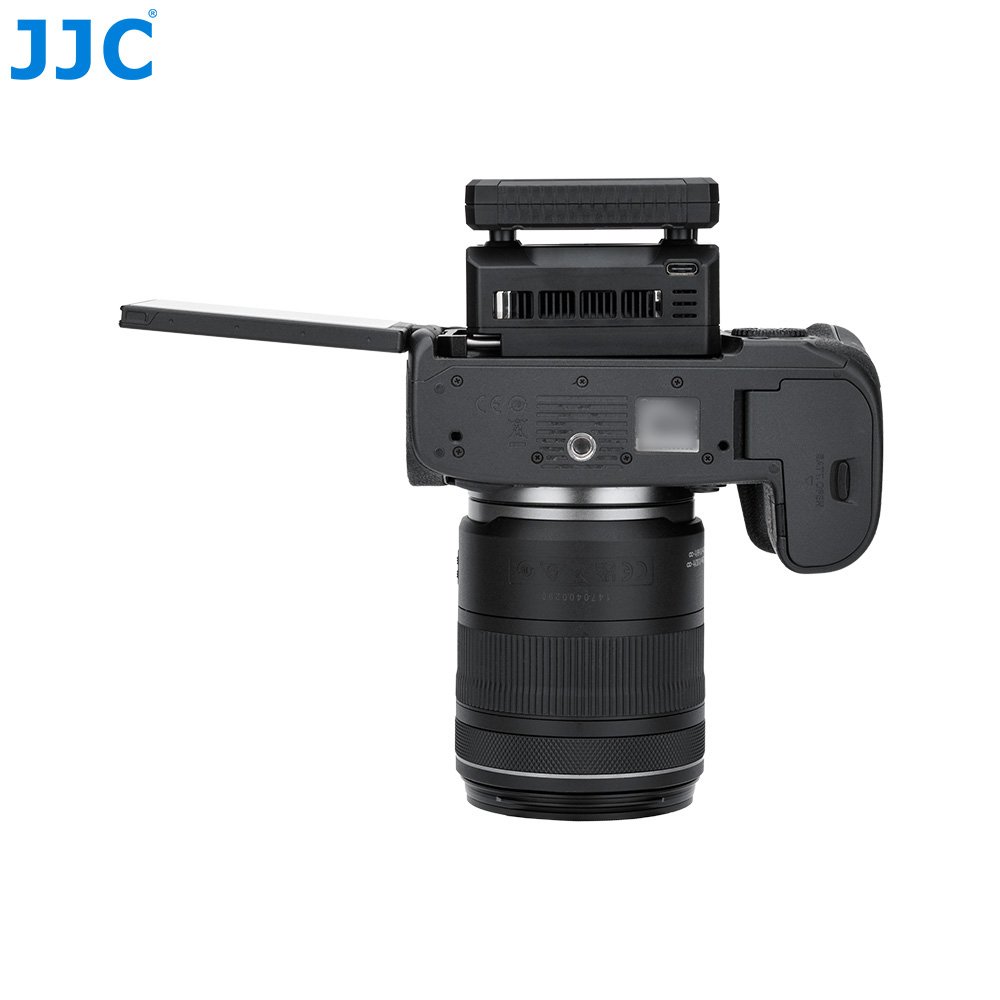

The product is compatible with cameras whose LCD screen slot dimensions fall within the following range:
Slot length: 75–94mm / 2.95–3.70"
Slot width: ≥53mm / 2.09"
All our products have undergone multiple inspections to ensure their quality. It is worth your trust!

Note:
Please ensure that the camera's slot is deep enough and that the sides are vertical or nearly right-angled. If the slot is too shallow or the edges are sloped or curved, the spring-loaded latch may not secure properly, which could affect stability during use.

Product Highlights
Wide Compatibility: Fits cameras with a flip-out LCD screen slot (75–94mm / 2.95–3.70" in length, ≥53mm / 2.09" in width)
Powerful Cooling System: Features a semiconductor cooling module, aluminum heat sink, and high-efficiency fan for rapid heat dissipation and overheating prevention
Stable Long-duration Shooting: Ensures reliable performance during extended shoots, live streaming, or in hot environments—prevents shutdowns, image degradation, and battery drain

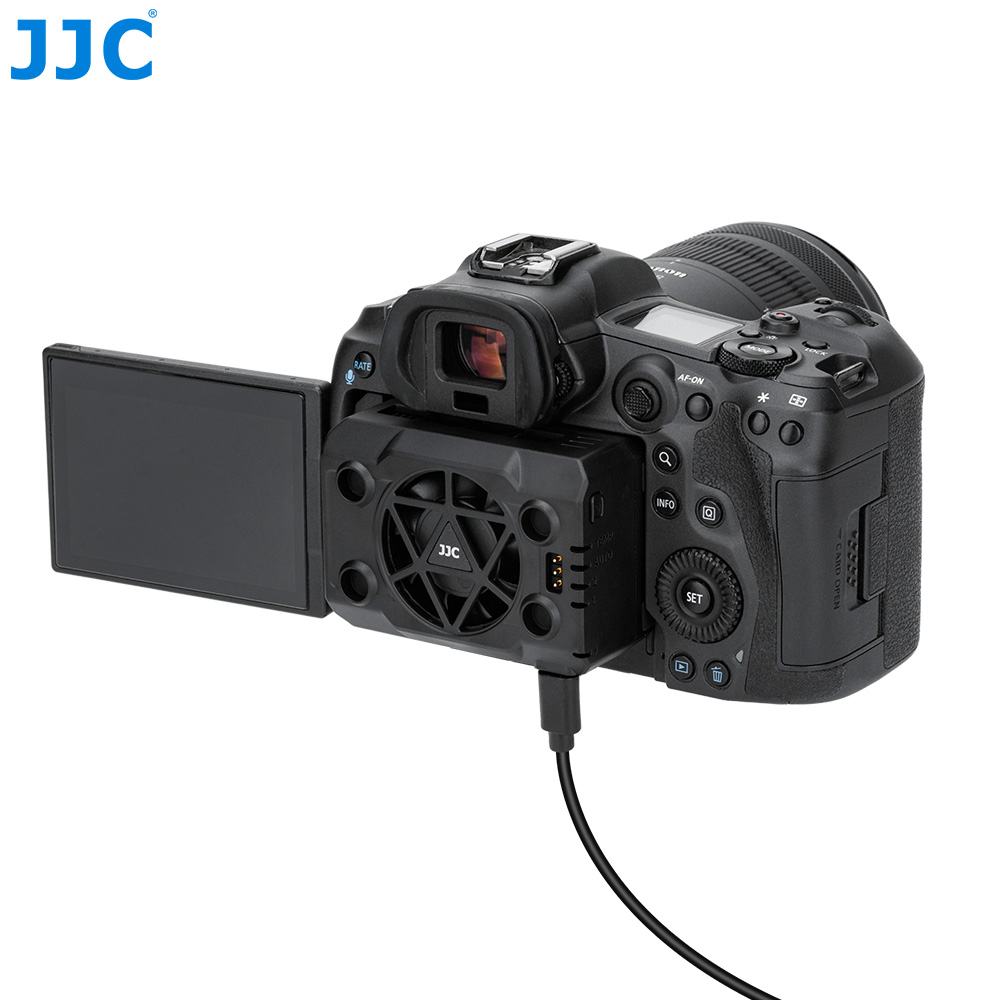

Dual Power Options: Supports both Type-C external power and magnetic battery power to meet different shooting needs
Three Cooling Levels: Offers Low, High, and Auto modes—precisely control cooling performance based on usage
High-performance Silent Design: Delivers strong airflow while staying quiet—suitable for audio recording and quiet settings
Protective Contact Design: Soft silicone pads on contact surfaces protect your device from scratches

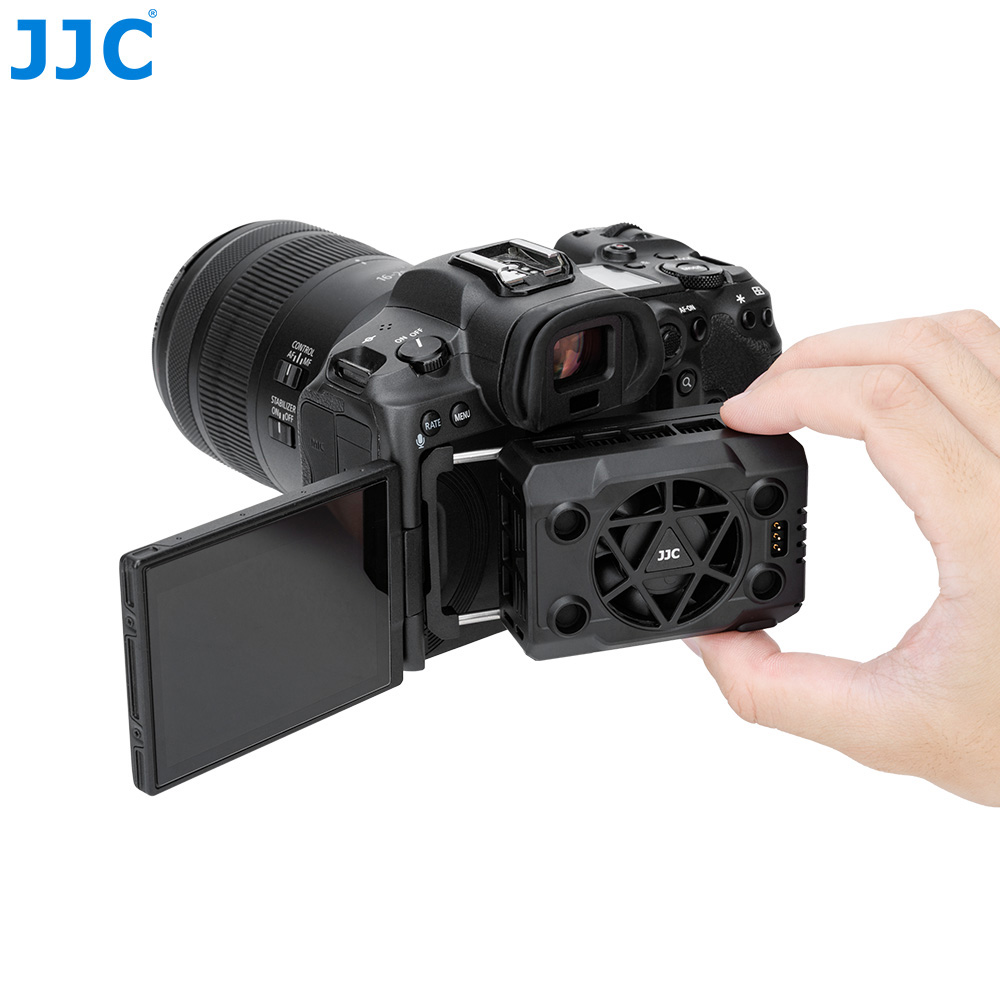

Quick & Secure Installation: Easy to mount and remove, with a snug fit and stable usage

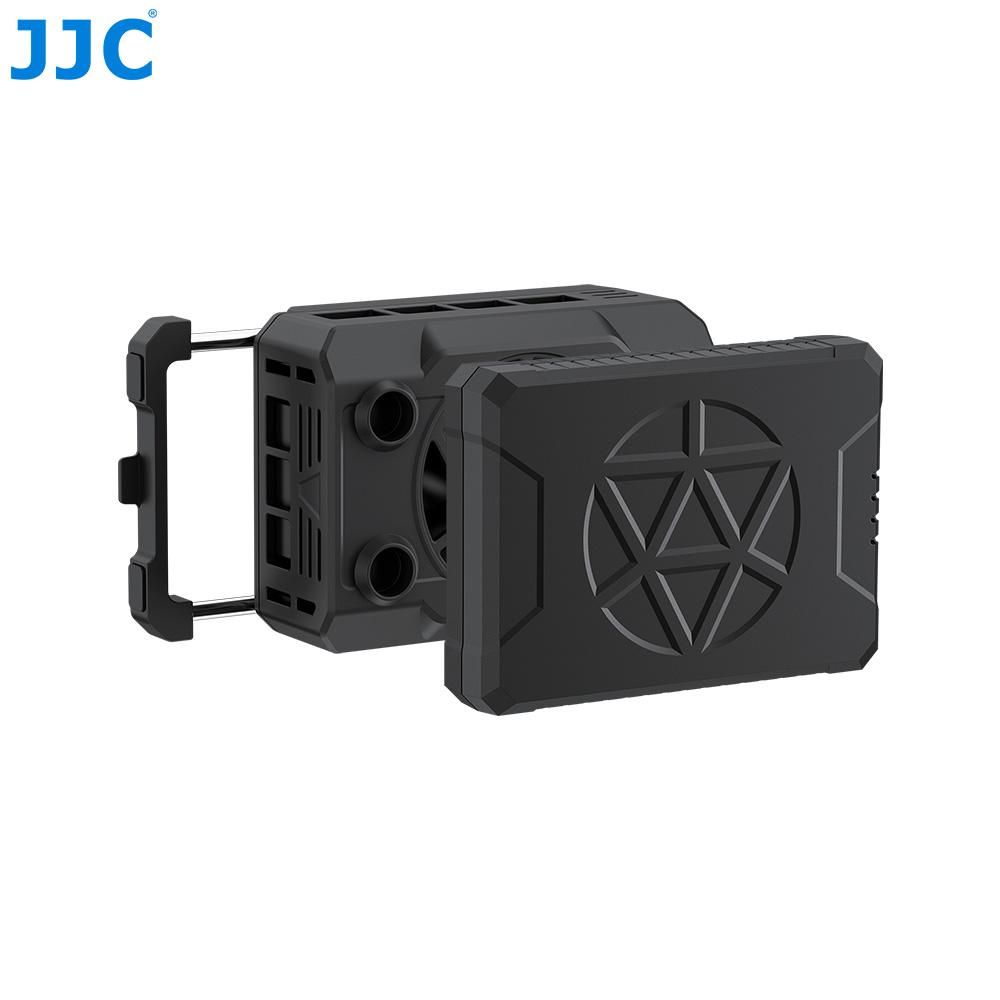

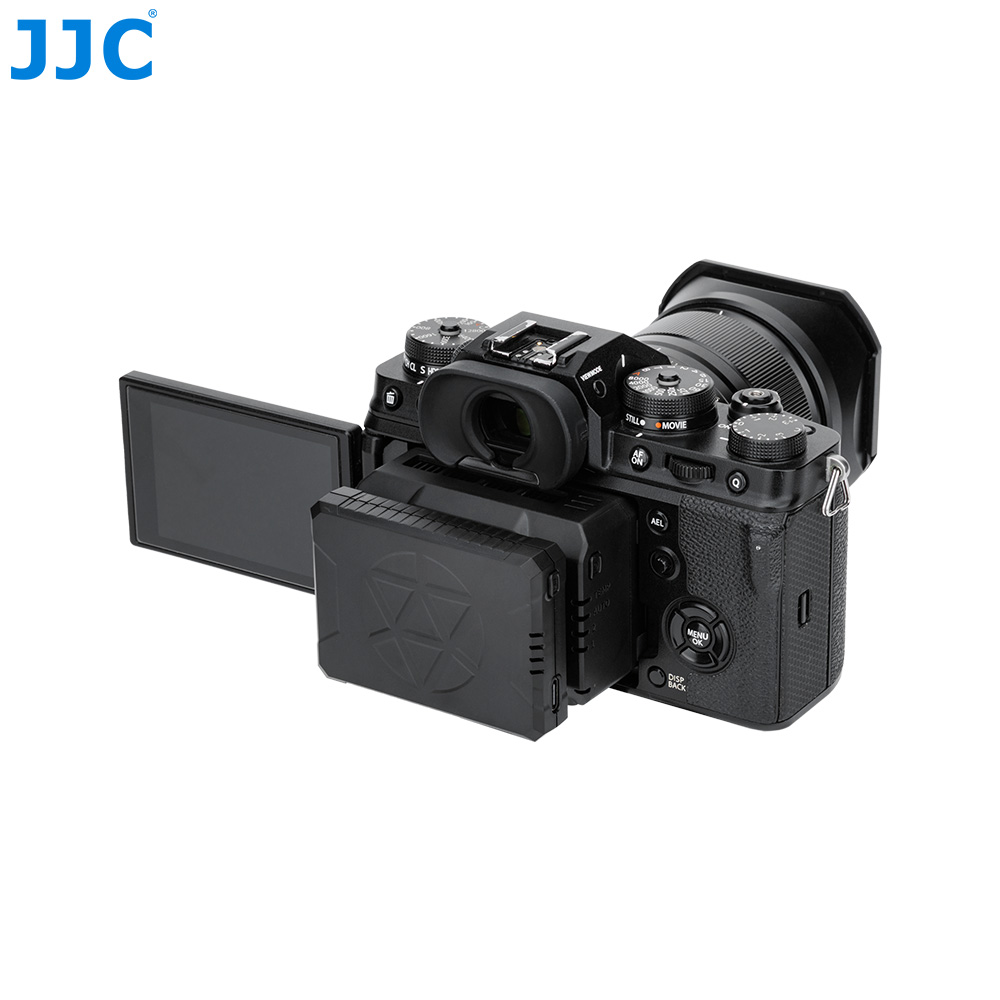

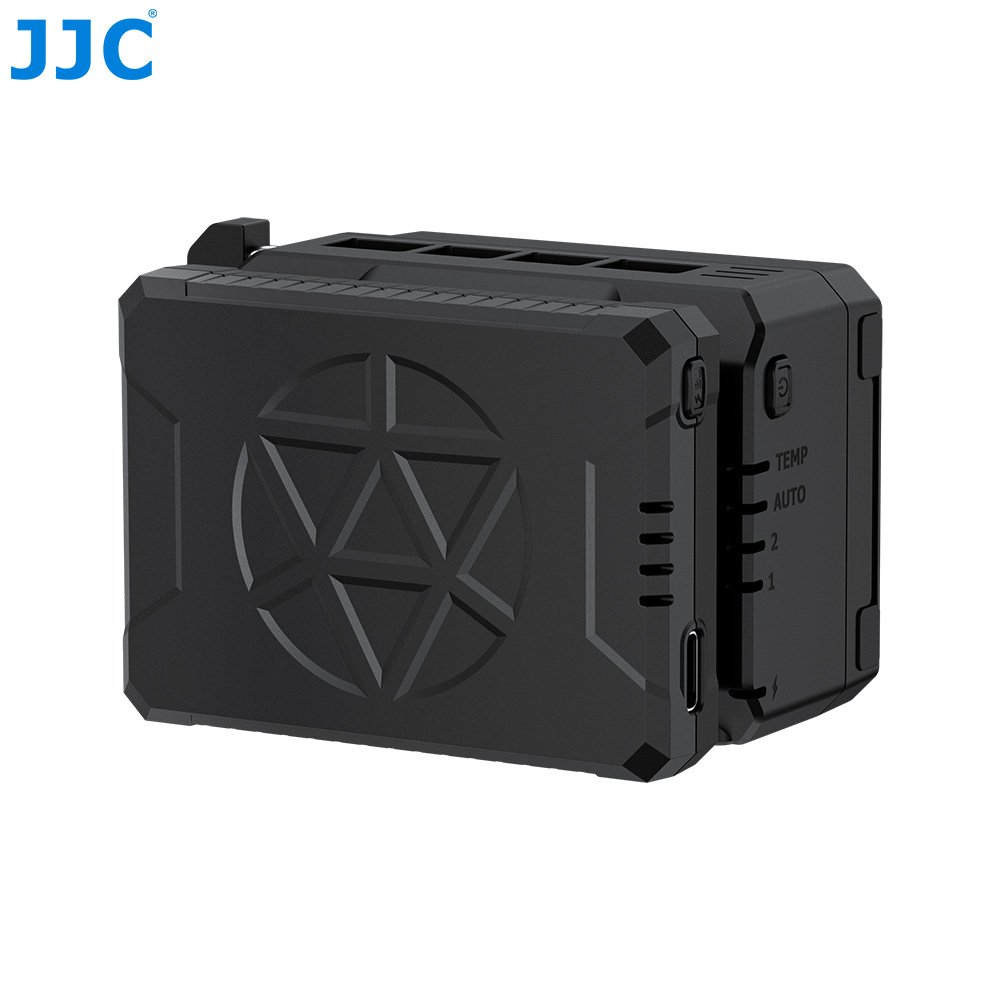

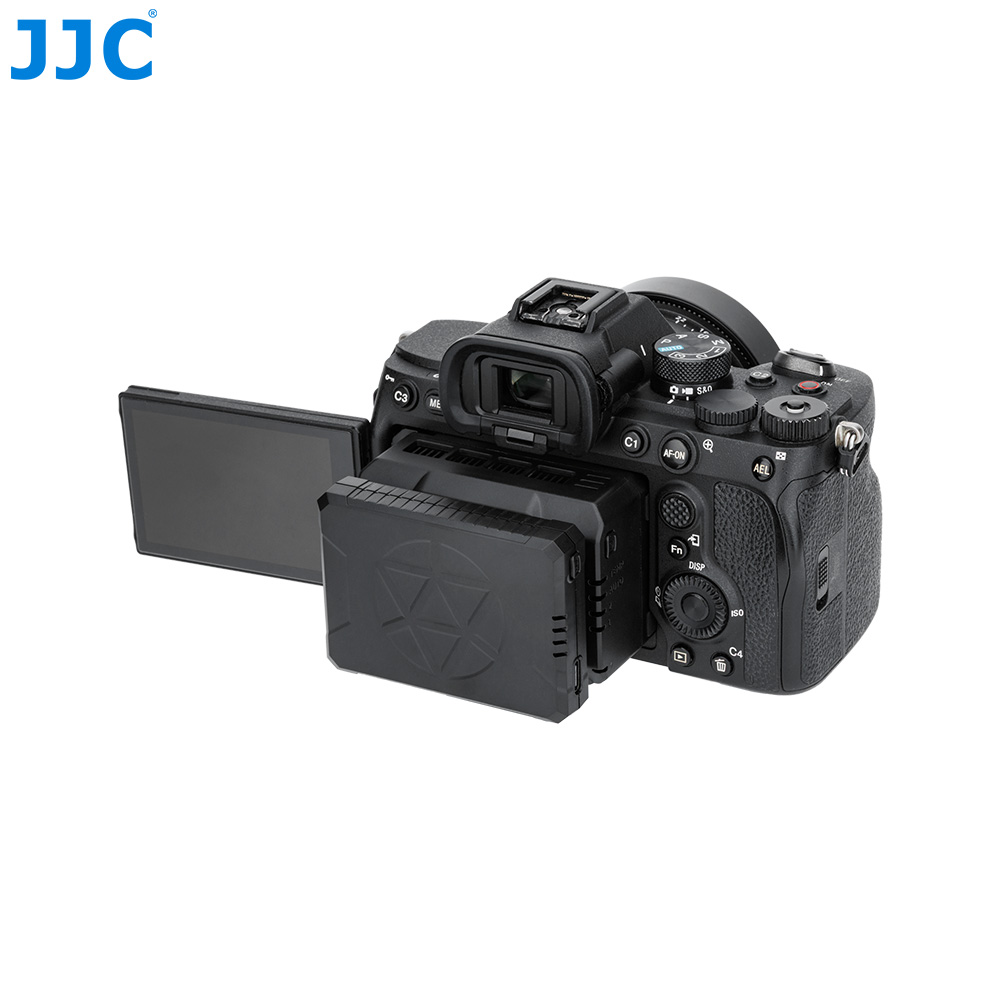

Magnetic Battery Design: Battery with magnetic attachment—long-lasting and easy to replace
Flexible Configuration Options: Cooler (JJC CCS-UN1SE) and battery (JJC CCS-BAT) can be purchased separately to suit different shooting needs

Package Includes

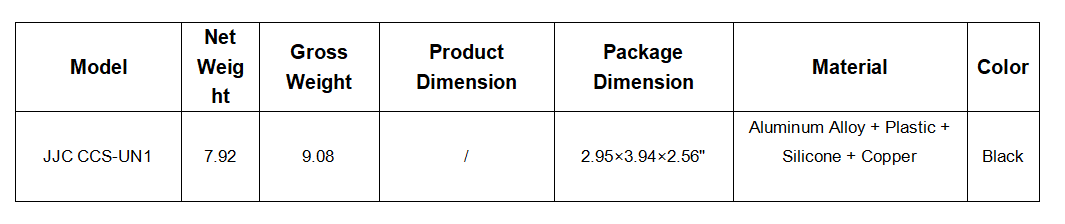

Model	Package Includes
JJC CCS-UN1	Camera Semiconductor Cooler ×1 Magnetic Lithium Battery ×1 Storage Pouch ×1 Charging Cable ×1 User Manual ×1
JJC CCS-UN1SE	Camera Semiconductor Cooler ×1 Storage Pouch ×1 Charging Cable ×1 User Manual ×1
JJC CCS-BAT	Magnetic Lithium Battery ×1 User Manual ×1

Compatible
SON. ZV-E10 II，A7CII，A7CR，A6700，FX30，ZV-1II，ZV-E1，ZV-1F，A7M4，A7C，FX3，ZV-E10，ZV-1，A7S3，A7R5，A7M4，A7C2II，A7CR，A6700
CAN. R1，R5 Mark II，R6 Mark II，R3，R5，R6，R8，R7，R50，R10，RP，90D，SX70 HS，R50V，R50
M50，RP， 600D， 750D，77D，800D， 200DII，200D
PAN. GH7，GH5M2，G9M2，G100D，G100，G95，G85，G9，GH5S，GH5，G7，G3
FUJI. X-S20，X-H2S，X-H2，X-S10，X-T4，XT200，XT-100
NIK. ZF，ZFC，Z30
OLY. OM-1，E3
PEN. K-70

＊The models listed above are only a selection. For more compatible models, please confirm the dimensions of your camera’s LCD screen slot.

Specifications

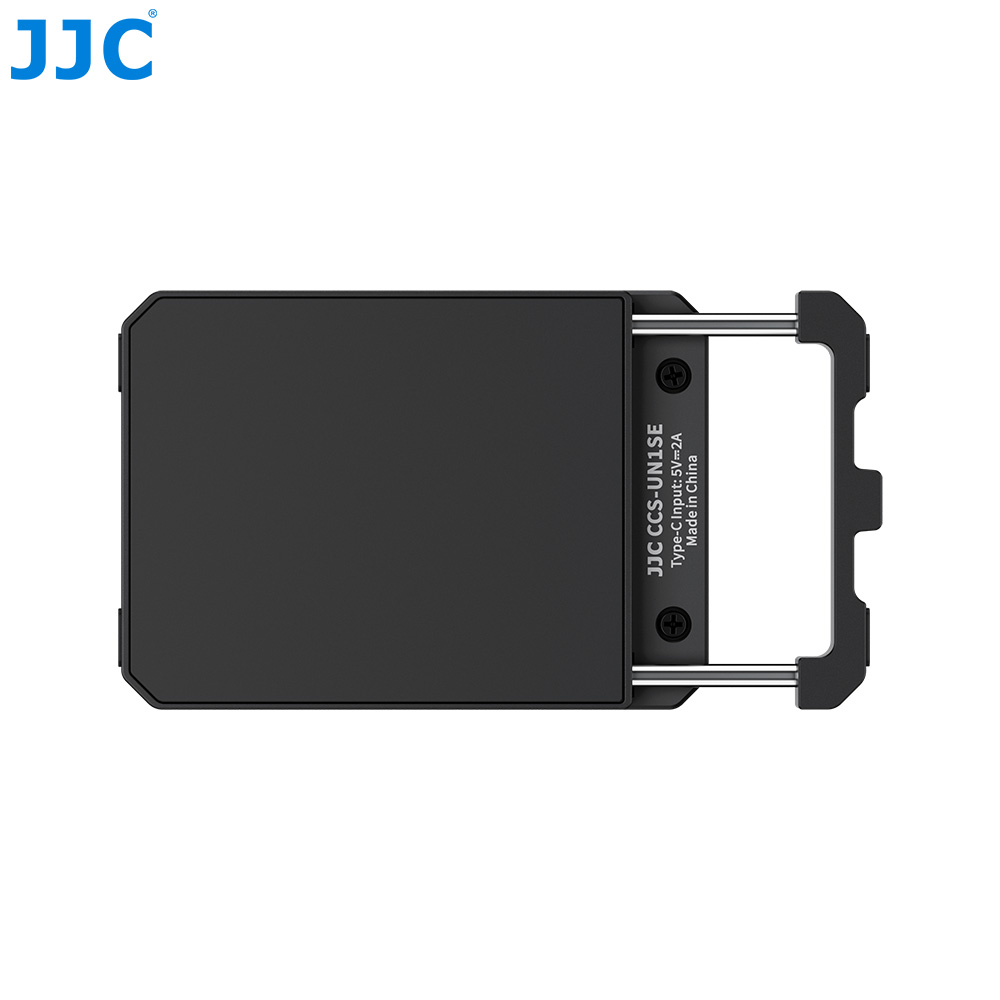

Camera Semiconductor Cooler

Power Port	Type-C
Input	5V⎓2A
Power Level 1	6.5W
Power Level 2	7.5W
Material	Aluminum Alloy + Plastic + Silicone + Copper
Size	96.3 ×53×33.7mm / 3.79 ×2.09×1.33"
Weight	123.14g / 4.34 oz
Width of Spring-loaded Clip	75-94mm / 2.95-3.70"

Battery Module for Camera Cooler

Battery Capacity	2500mAh / 3.7V / 9.25Wh
Power Supply Port	Type-C
Input	5V⎓2A
Usage Time	Level 1: 75 min
	Level 2: 65 min
	Automatic Level: 65–75 min (Automatic temperature adjustment, actual usage time depends on usage.)
Charging Time	Approx. 135 min
Material	Plastic + Copper
Size	74.7×53×22mm / 2.94 ×2.09×0.87"
Weight	66.22g / 2.34 oz
